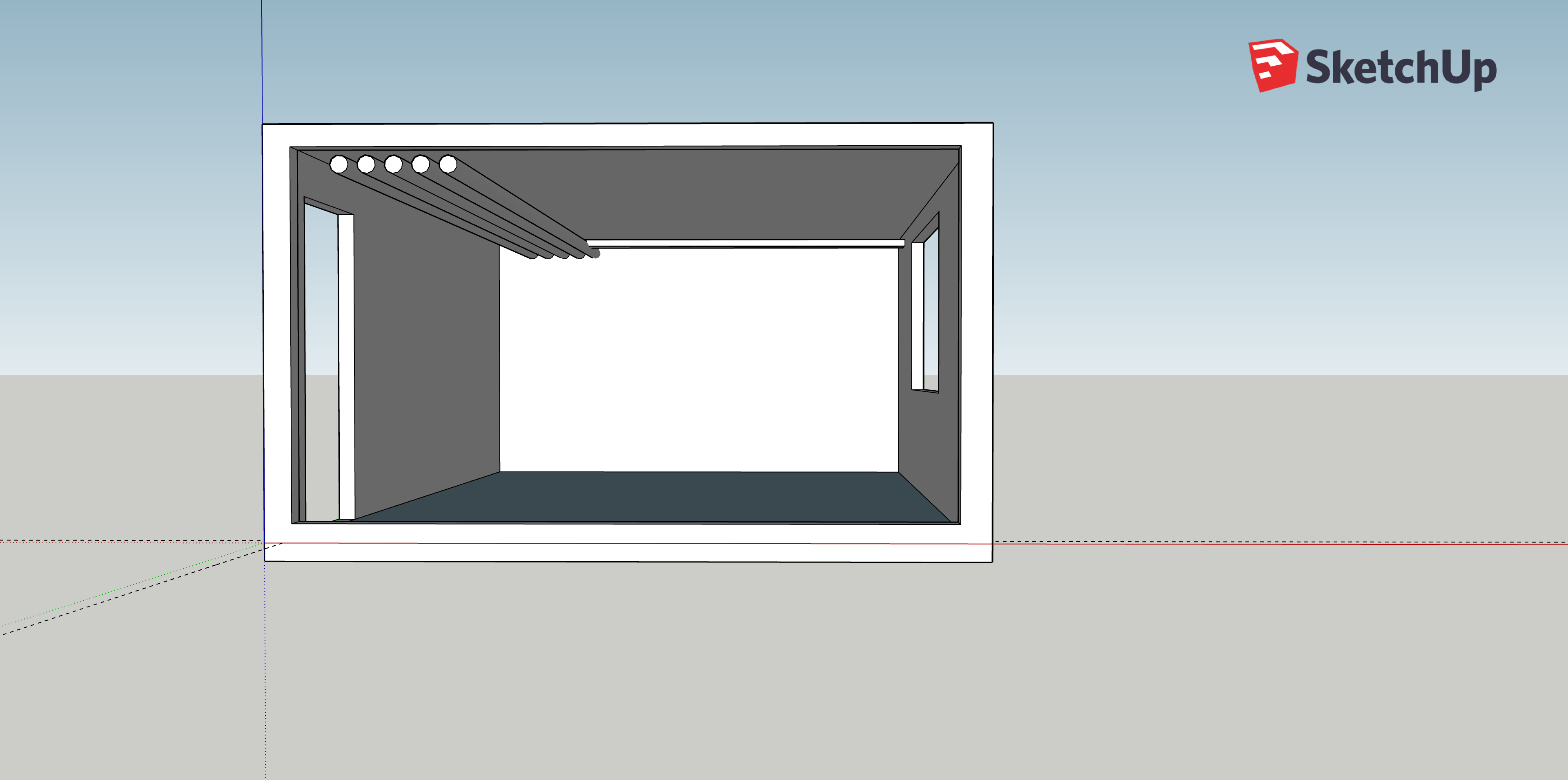

Room
Dimensions
Height: 2.03m / 2.20m
Floor space: 3.80m x 4.90m
Allocated in the basement (stairs!) and to be accessed via a door 1.95m x 0.80m.
Raum

Supply
3x230V max 32A.
Fresh water and sink.
Window (fresh air).
Internet (fiber).


Simulator
Vision
Resolution:
A typical human eye is stated with a 'visus' of 1.0 for a far object, near field resolution differing. This gives a resolution of 2 to 1 arc min (2'..1').

Brightness:
Some common lux-values:
sky clear, sun 90deg130.000lx
sky clear, sun 60deg (high noon europe, summer)90.000lx
sky cloudy, sun 60deg (high noon europe, summer)19.000lx
shadow in summer10.000lx
office desk500lx
candle1lx
clear night sky, full moon0.3lx
clear night sky, no moon but stars0.001lx
cloudy night sky, no moon, no stars0.00013lx

Projector arrangement:
Projected sight shall cover the entire angle of window-sight, as it is important for visual approaches to have the field in sight. So the lower end for the situation when the aircraft is "almost" over the field, side-backwards during traffic patterns when the aircraft position needs to be judged having the field far behind at the side and finally the upper end of the screen at the sides, when turning in traffic patterns).

payload
Pilots240kgsingle configuration (=120kg) also possible
Seats180kg
MIP90kg
Rudder pedals30kg
Stick, side panel62kg
Central pedestral65kg
Overhead20kg
Inner cover50kg
Aft cockpit20kg
Cockpit shell300kg
Wiring100kg
Projectors50kg
Total1.219kg
center of gravity is assumed at the throttle quadrant, as the cockpit is symmetric and
beeing the middle between overhead, MIP and central pedestral. CoG of the seats may also likely be at the level of the tq.


Dynamics
Operational limits A320
Hard landing (A-320 AMM chapter 05-51-11-200-004-Inspection):
  Greater than 2.6g but less than 2.86g at CG at max ldg weight or
  greater than 10ft/sec (600ft/min) but less than 14ft/sec (840ft/min) at max ldg weight.
Severe hard landing:
  greater than 2.86g at max ldg weight / greater than 840ft/min at max ldg weight.
In flight:
  -1..+2.5g(clean)
  0..+2g (other)
  A320 limits found at www.theairlinepilots.com
spring deflection (A320-AC-2-9-0):
  430mm (nose gear)
  470mm (2 wheel main gear)
  419mm (4 wheel main gear)
Engine thrust A320neo
  143kN (CFM LEAP max t/o)
  147kN (PW1100G max t/o)
Brake performance
  1440m / 137kt / APC C (A320)
  1350m / 130kt / APC C (A319)

Operational limits B737NG
Non-normal landing:   greater than 10ft/sec at max ldg weight.
  BOEING B737 conditional maintenance inspection procedures
In flight:
  -1..+2.5g(clean)
  0..+2g (other)
  limits found on www.b737.org.uk
spring deflection:
  ???mm (nose gear)
  ???mm (main gear)
Engine thrust
  98kN (CFM56 max t/o)
Brake performance
  1600m / 147kt / APC C (B737-800)
  1400m / 137kt / APC C (B737-700)

max rolling assumed
400deg/sec

Statics
Max pitch / bank
60 deg

Colors
Light "airbus-blue": RAL5014 (tbc!)
Airbus 2nd generation panel color (gray): RAL 7031 (tbc!)
