Plattform

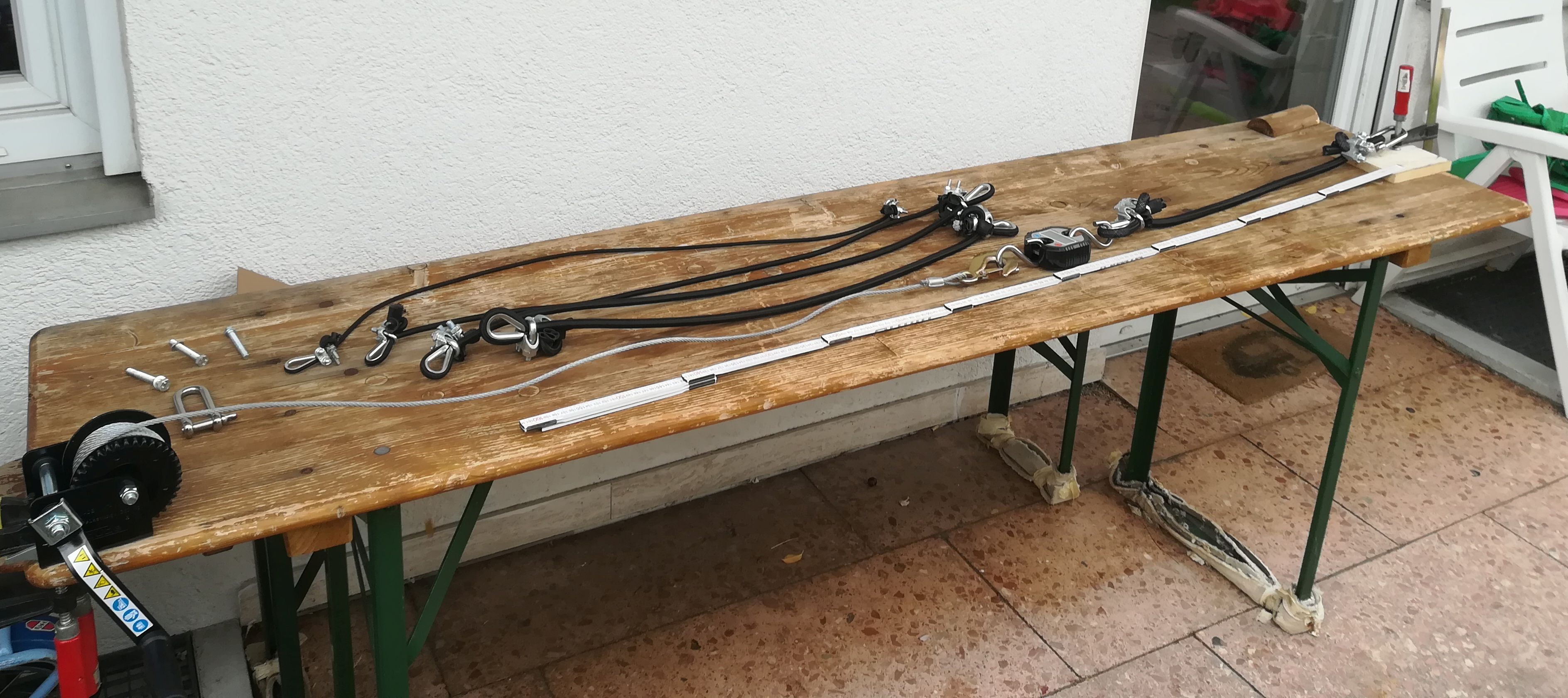

It shall be a balanced platform, so I did some characterization on relevant bungee cords:

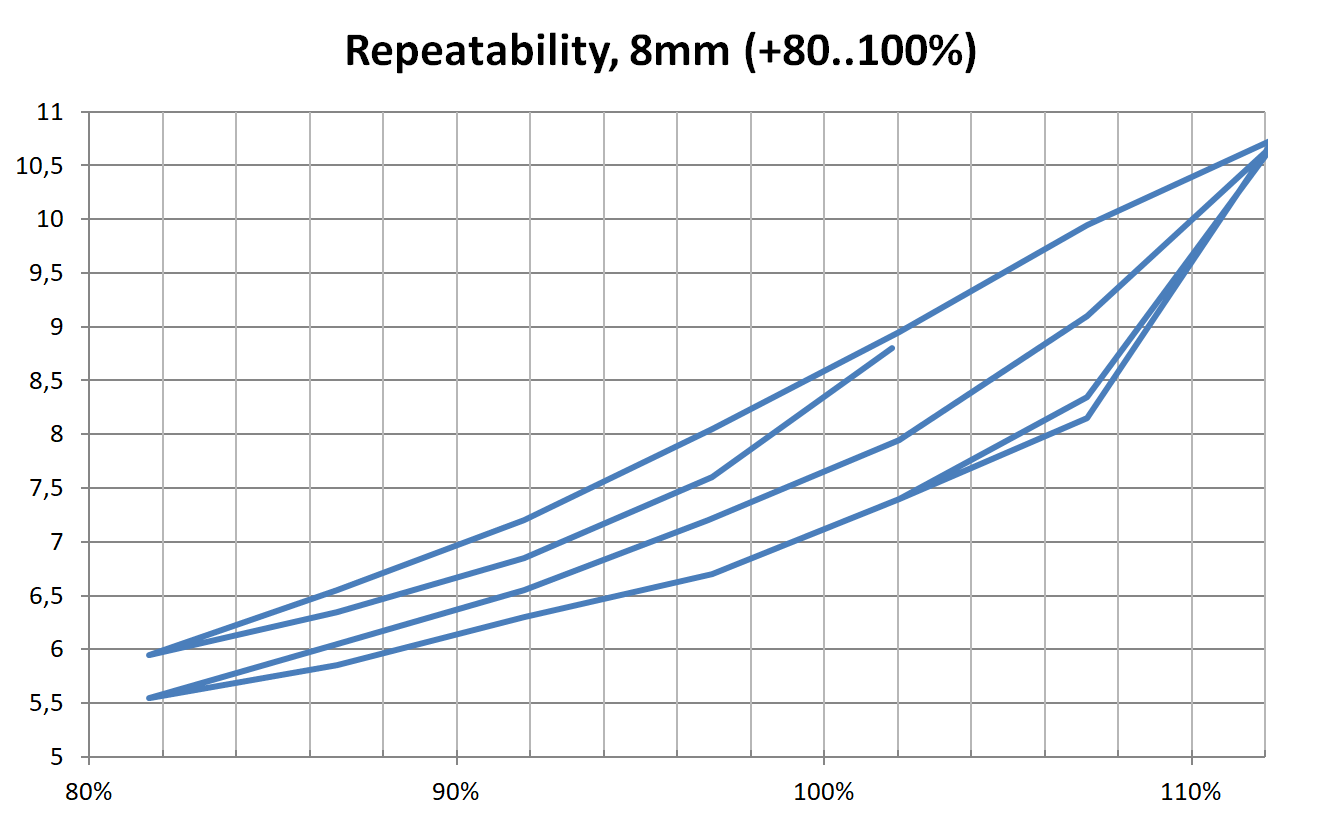

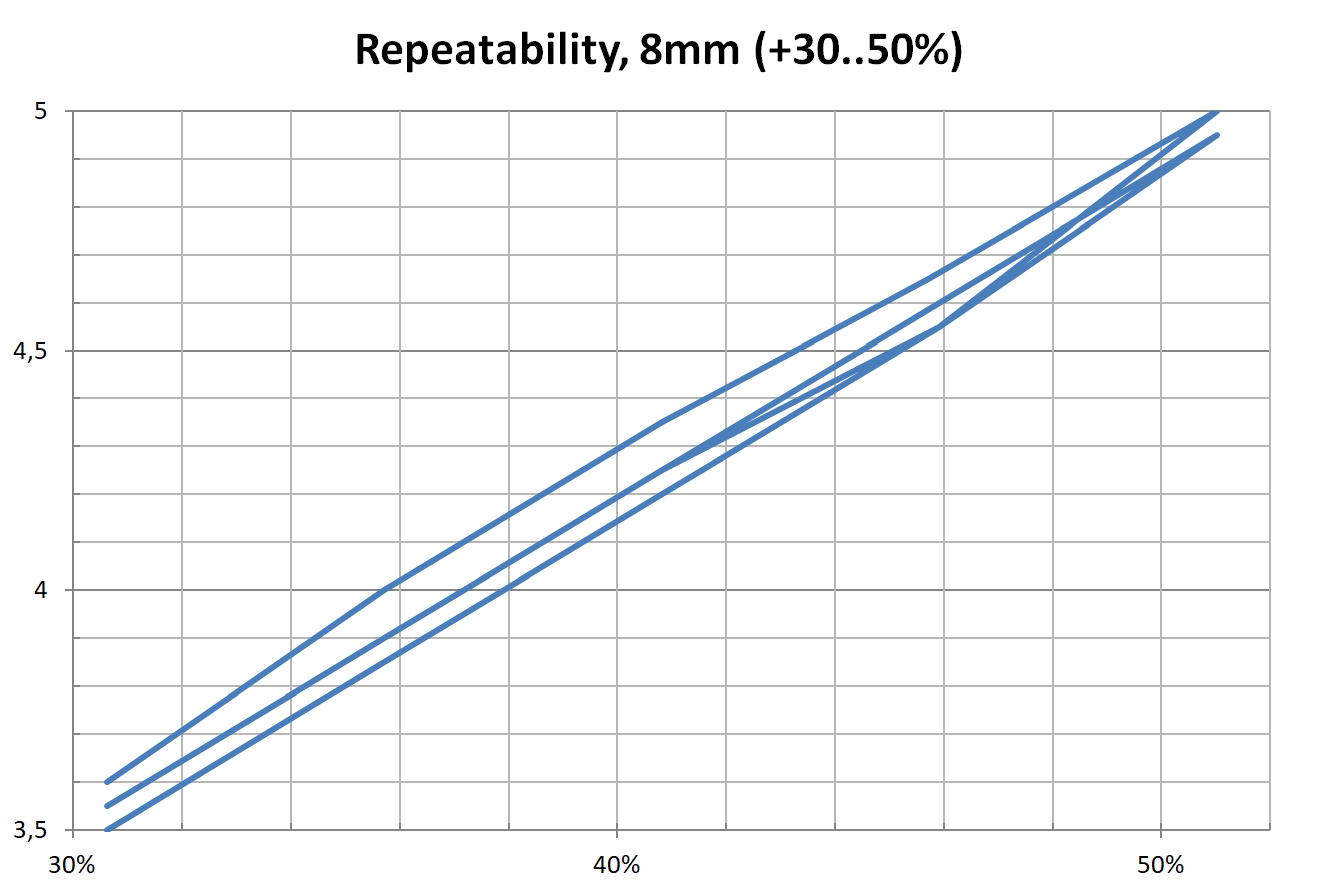

Further I did a load-unload characterisation at the linear area (approx 50% elongation) and the assumed limit of linear behaviour (approx 100% elongation):

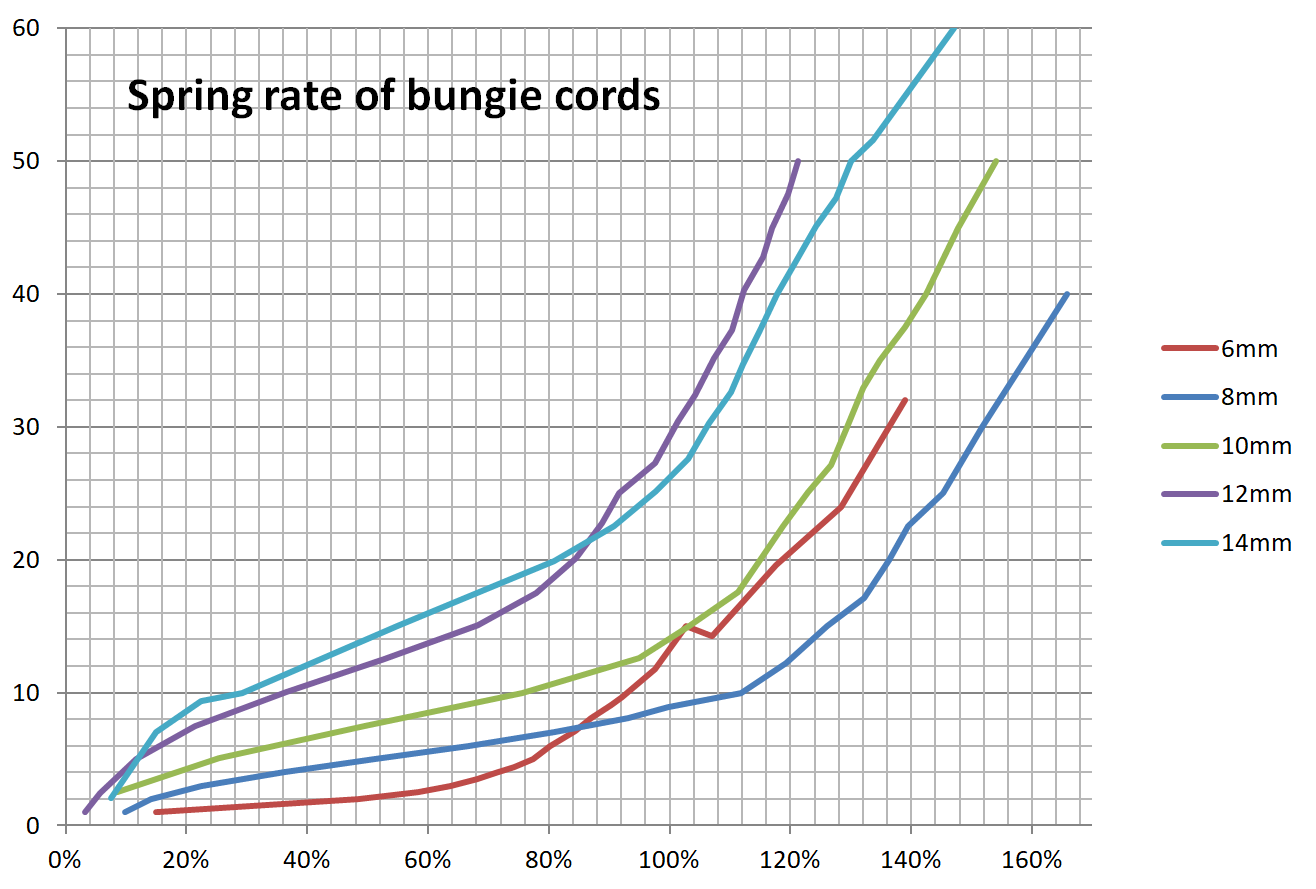

This results in coefficients @ 40% elongation (linear behaviour) as below:

Cord diameter	14mm	12mm	10mm	8mm	6mm
[kg/cm]	0.29	0.17	0.11	0.07	0.05
[cm/kg]	3.42	6.04	9.18	14.7	18.6

vision
